XOU24WDZGOA | $1,799

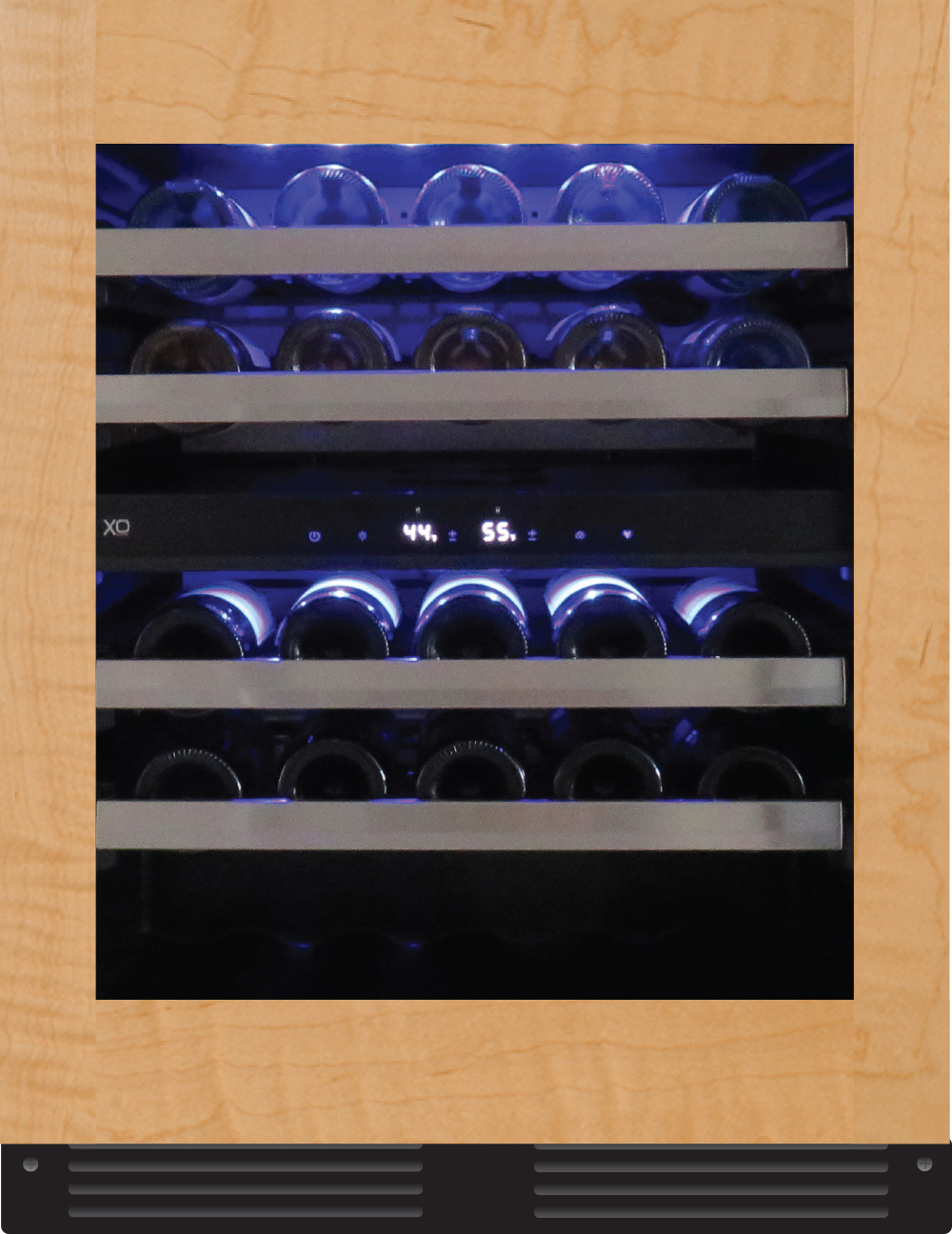

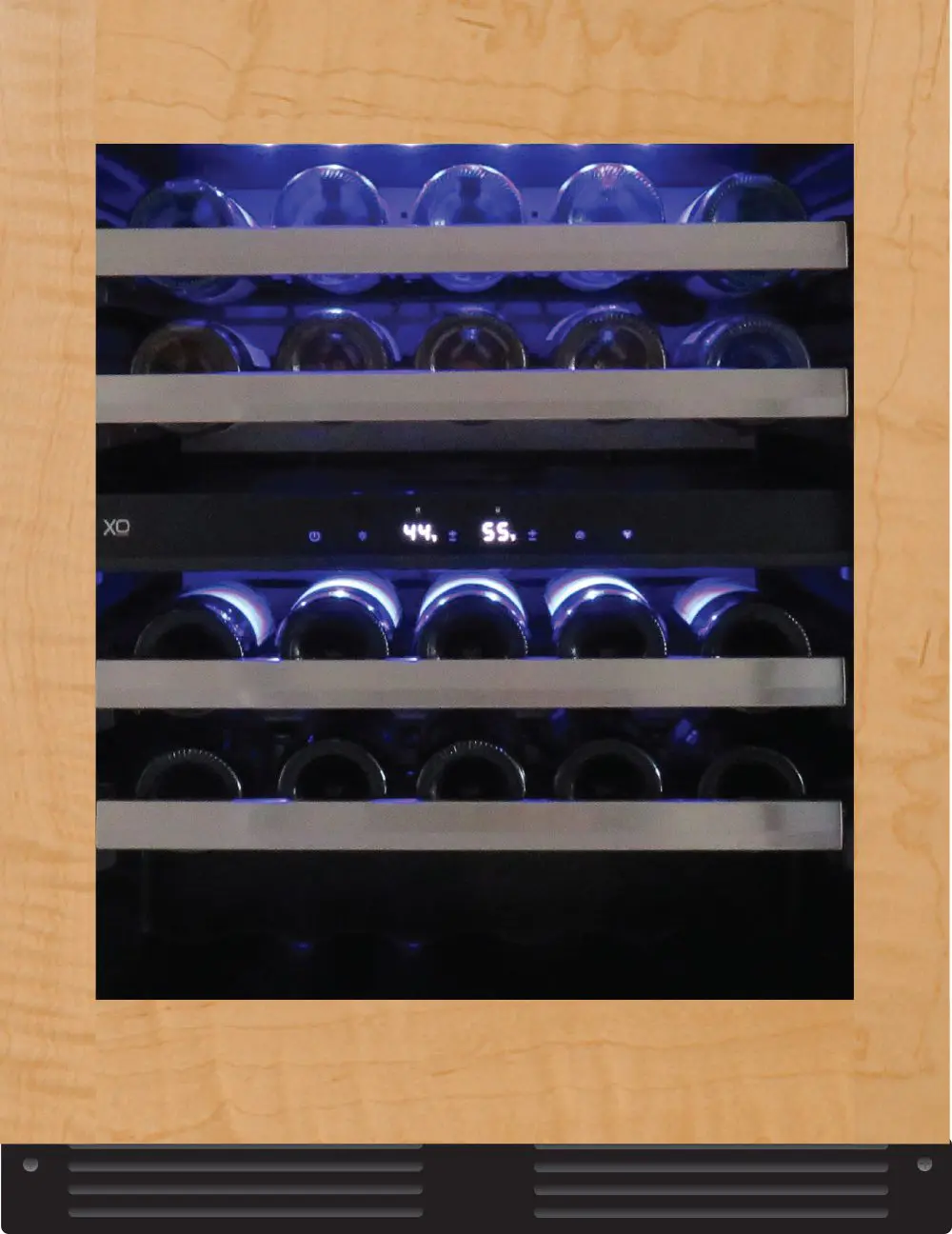

24" Designer Undercounter ADA Wine Storage

ACCOMMODATES:
ADA HEIGHT | US STANDARD HEIGHT | EUROPEAN

Red and white wines require different environments. XO’s Dual Zone wine cooler enables you to store and serve your favorite vintages from the same cabinet at just the right temperature. The upper racks will hold up to 16 bottles chilled between 41′ to 50′ F while the lower zone will hold up to another 30 bottles between 50′ and 64′ F.

STANDOUT FEATURES

  • Fits US / European / ADA
  • Articulating Hinge
  • Handleless
  • Adapts for European Toe Kicks/ Plinth
  • Optional SS Panel for ADA Installations
  • Dual Zone stores white and red wine at different temperatures
  • Shelves extend fully while loaded
  • Quiet Operation 39 dBA
  • Tri-color LED interior lighting
  • Flush Undercounter Installation design
  • X-Active circulation ensures uniform temperature
  • Low E-Glass blocks damaging UV light

Specifications & Files

Fits US | European | ADA Cabinets

Cabinet Compatibility
1
US Standard Use the Optional Trim Strip (included) with the leveling legs retracted to fit US Standard height counters.
2
European Standard Extend the sturdy Leveling Legs to accommodate a custom 6” (150mm) Plinth.
3
ADA Height With the leveling legs retracted, your XO GOA fits perfectly below ADA height counters.

KEY FEATURES

ARTICULATING HINGE

The articulated hinges ensure a seamless integration with your cabinets and allow use of panels longer than 30”.

ADAPTS FOR EUROPEAN PLINTH/TOE KICKS

The sturdy leveling legs and foot sliders enable you to raise the unit for Plinth/Toe Kicks up to 6” (150mm).

Specifications & Files

Appearance

  • Finish: Panel Ready & Glass
  • Control Type: Intuitive Touch Digital Controls
  • Toe Kick Color: Black
  • Interior Lighting: Tri-Color LED Interior Illumination
  • Wine Rack Material: Steel
  • Controls: Electronic Touch
  • Control Lighting: Backlit LCD
  • Filter Type: Activated carbon air filter
  • Light Colors: Midnight Blue, Theater White, Honey Amber
  • Light Type: Tri-Color LED Interior Illumination
  • Lighting Features: Three lighting modes
  • Door Features: Panel Ready - UV Blocking Low-E Glass
  • Door Swing: Reversible
  • Interior Finish: Molded ABS
  • Number of Temperature Zones: 2
  • Number of Wine Racks: 4
  • Open Door Alarm: Yes
  • Sabbath Mode: Yes

Capacity

  • Bottle Storage Capacity: 33 (750ml)
  • Cubic Foot Capacity: 3.85 cu ft
  • Storage Features: Vibration Dampened Full Extension, Fully Loaded

Performance Specifications

  • Sound Level: 37 dBA
  • Ambient Temperature: 60 to 90 degrees F
  • Maximum Temperature Zone 1: 50 degrees F
  • Maximum Temperature Zone 2: 64 degrees F
  • Minimum Temperature Zone 1: 41 degrees F
  • Minimum Temperature Zone 2: 50 degrees F

Weights & Dimensions

  • Product Weight: 125
  • Product Dimesions (DxWxH): 21 5/8" x 23 7/8" x 32 1/2 to 34 1/8"
  • Height: 32 1/2 - 34 1/8
  • Width: 23 7/16"
  • Depth: 21 5/8"
  • Depth Excluding Handles: 22 7/16" includes 3/4" panel
  • Depth Less Door: 19 15/16"
  • Depth With Door Open 90 Degrees: 44 11/16"
  • Height to Top of Door Hinge: 32 1/2 - 34 1/8

Installation

  • Install Type: Fully Integrated Undercounter
  • Location: Indoor
  • Vent Location: Bottom Front
  • Cut-out Depth: 24"
  • Cut-Out Height: 32 1/2" to 34 1/4"
  • Cut-Out Width: 24"
  • Cooling Unit Type: Air Cooled Compressor
  • Refrigerant: R600a
  • Defrost Type: Automatic Defrost
  • Power Cord Included: 6' with Flat Plug
  • Required Plug Type: 5-15P Plug Type
  • Leveling Legs: Included

Power Ratings

  • Amperage: 1.2 amps
  • Electrical: 115V-60Hz-1.2 Amps
  • Frequency (hz): 60 Hz
  • Voltage: 115V
  • Wattage: 138 watts

Shipping

  • Freight Class: 92.5
  • Shipping Weight: 125
  • Carton Height: 37"
  • Carton Width: 27"
  • Carton Depth: 29"
  • Shipping Method: LTL
